VTR220L28IS30-4S08 GH730

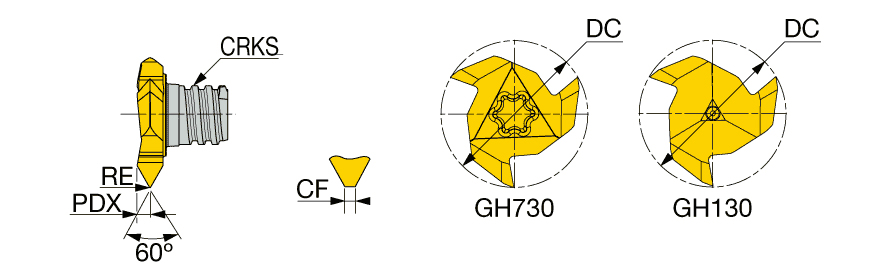

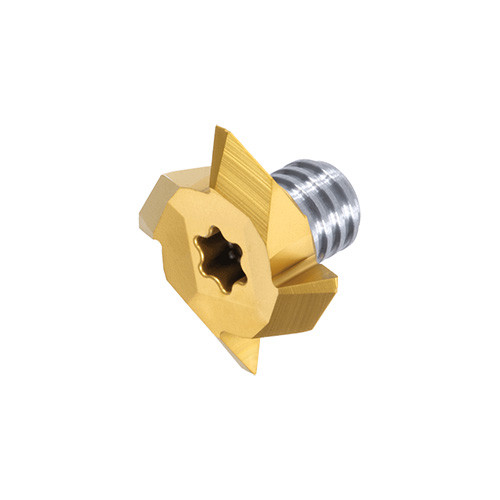

Interchangeable solid carbide milling heads for 60 deg partial profile thread milling.
Ürün Özellikleri
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Tool Type | Solid carbide thread mills |
| Takım Çapı (DC) | 21.7 mm | Threads per Inch Maximum (TPIX) | 5.6 |
| Flute Count (NOF) | 4 | Threads per Inch Minimum (TPIN) | 8.5 |
| Kaplama | TiCNO | Thread Pitch Minimum (TPN) | 2.5 mm |
| Kalite | GH730 | Thread Pitch Maximum (TPX) | 4 mm |
| Köşe Radyus (RE) | 0.2 mm | Functional Length (LF) | 2.82 mm |
| İşlenebilir Malzeme | | Çelik | Paslanmaz Çelik | | Ölçüm Türü | Metric |
| Uygulama | | Ext. Thread Milling | Int. Thread Milling | | Gövde Malzemesi | Carbide |
| Keskin Kenar Malzemesi | Carbide | Unit | M |
Ürün Özellikleri
| FamilyDesc | Interchangeable solid carbide milling heads for 60 deg partial profile thread milling. | COO | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Nakliye Bilgisi
PackageWeight
0.0000
