2QP-CCGW09T304-LF BXA20
Pozitif 7 derece boşluk açılı, M/G sınıfı, 80 derece rombik CBN kesici uç
Ürün Özellikleri

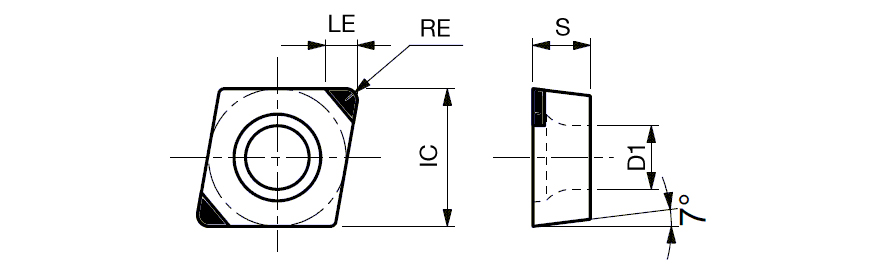

| İşlenebilir Malzeme | | Sert Malzemeler | | Min D.O.C. | 0.05 mm |
| Uygulama | | Kesici uçlar | | Maksimum Kesme Boyu (APMX) | 0.5 mm |
| Köşe Radyus (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Uç Kalınlığı (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Keskin Kenar Malzemesi | PCBN | Chip Breaker Type | LF-CBN |
| Kaplama | TiAlN | Ölçüm Türü | Metric |
| Kalite | BXA20 | Gövde Malzemesi | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | Cutting Edge Effective Length (LE) | 2.3 mm |
| Tool Type | Turn Ultra hard Inserts | Unit | M |
Ürün Özellikleri
| FamilyDesc | Pozitif 7 derece boşluk açılı, M/G sınıfı, 80 derece rombik CBN kesici uç | FamilyName | 2QP-CCM/GW |
| Remarks | The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, MW, W, WL, WJ, WG: Wiper | BrandName | Tungaloy |
| COO | JAPAN |
Nakliye Bilgisi
PackageWeight
0.0130
Ad
Turning Indexable Inserts
FamilyName
2QP-CCM/GW
BrandName
Tungaloy
