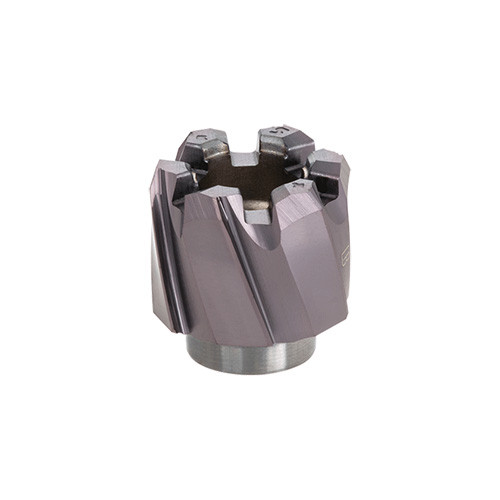

HRM-15.000-BL-T6 AH725
Reaming heads with left hand flute for through holes (H7 hole tolerance)
Ürün Özellikleri

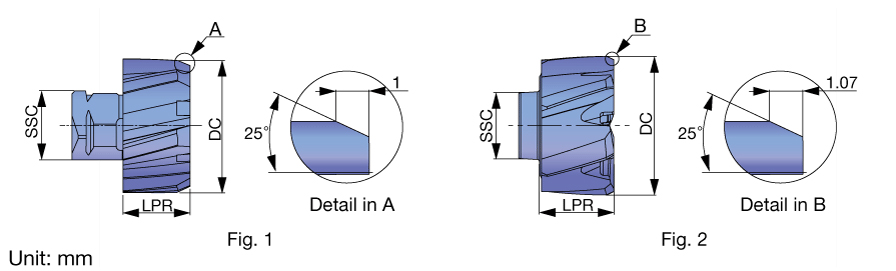

| Protruding Length (LPR) | 9.4 mm | Kalite | AH725 |
| Insert Seat Size Code (SSC) | T6 | Kaplama | TiAlN |
| Gövde Malzemesi | Carbide | Keskin Kenar Malzemesi | Carbide |
| Ölçüm Türü | Metric | Uygulama | | Raybalama | |
| Takım Çapı (DC) | 15 mm | İşlenebilir Malzeme | | Çelik | Paslanmaz Çelik | Dökme Demir | Sert Malzemeler | Demir Dışı Metaller | Yüksek Isı Alaşımları | |
| Flute Count (NOF) | 6 | Unit | M |
Ürün Özellikleri
| FamilyDesc | Reaming heads with left hand flute for through holes (H7 hole tolerance) | COO | SOUTH KOREA |
| Remarks | DC: 10.000, DC tolerance: +0.012 / +0.008, Hole diameter tolerance (H7): +0.015 / 0 DC: 11.000 18.000, DC tolerance: +0.015 / +0.011, Hole diameter tolerance (H7): +0.018 / 0 DC: 18.001 30.000, DC tolerance: +0.017 / +0.013, Hole diameter tolerance (H7): +0.021 / 0 DC: 31.001 32.000, DC tolerance: +0.021 / +0.016, Hole diameter tolerance (H7): +0.025 / 0 |
Nakliye Bilgisi
PackageWeight
0.0000
