TXN03R040M16.0E05
4 kenarlı, çift taraflı kesici uçlu, süper High-Feed freze lamaları
Ürün Özellikleri

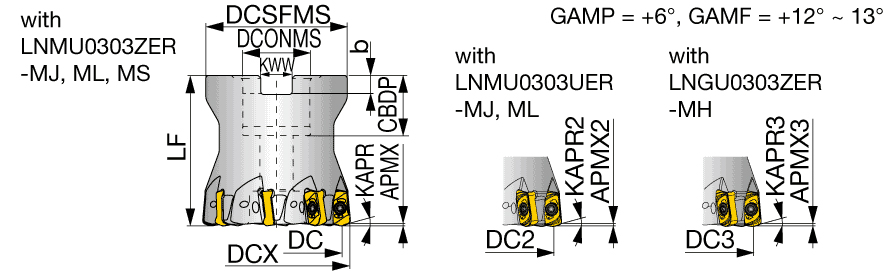

| Takım Çapı (DC/DCX) | 40 mm | Gövde Malzemesi | Steel |
| Takım Çapı (DC) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 40 mm | Uygulama | | High Feed Milling | |
| Takım Ağız Sayısı | 5 | Ölçüm Türü | Metric |
| Maksimum Kesme Boyu (APMX) | 1 mm | Functional Length (LF) | 40 mm |
| Takım Bağlama Çapı (DCONMS) | 16 mm | Tool Type | Fast Feed Face mill |
| Takım Toplam Boyu | 40 mm | Unit | M |
| Master Insert Identification (MIID) | LNMU0303ZER-MJ |
Ürün Özellikleri
| FamilyDesc | 4 kenarlı, çift taraflı kesici uçlu, süper High-Feed freze lamaları | FamilyName | TXN03 |
| COO | JAPAN | BrandName | Tungaloy |
Nakliye Bilgisi
PackageWeight
0.3220
Ad
Indexable Face Mills
FamilyName
TXN03
BrandName
Tungaloy
İlgili Belgeler

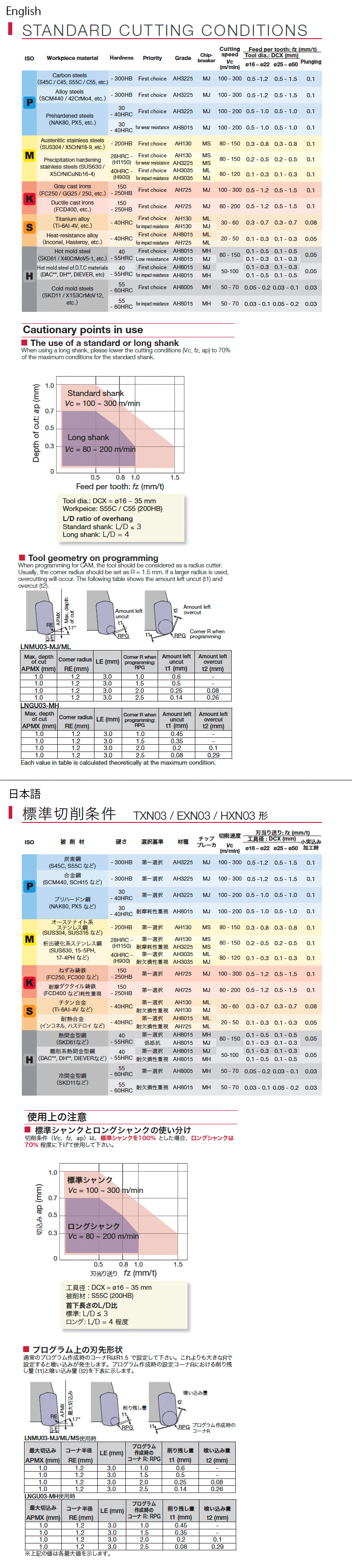

The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DC above 33 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
