Ürün Özellikleri
| Uygulama | | Inserts for miniature | | Kalite | DT4 |

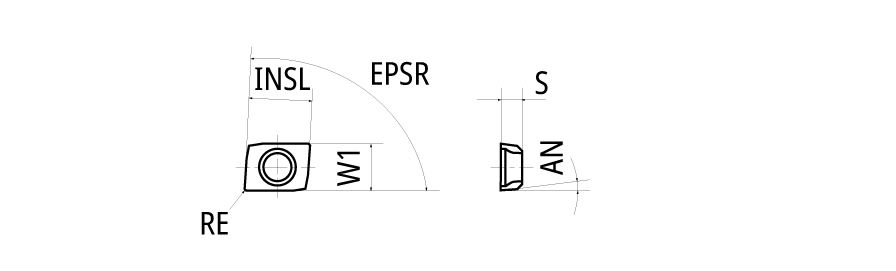

| Insert Length (INSL) | 5.56 mm | Clearance Angle Major (AN) | 7 Degrees |
| Köşe Radyus (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 4.2 mm | Keskin Kenar Malzemesi | Carbide |
| Uç Kalınlığı (S) | 1.88 mm | Cutting Edge Effective Length (LE) | 0 mm |
| Wiper Edge Length (BS) | 0 mm | Ölçüm Türü | Metric |
| Insert Included Angle (EPSR) | 87 Degrees | Gövde Malzemesi | Carbide |
| Kaplama | TiAlN | Unit | M |
Ürün Özellikleri
| COO | Japan | BrandName | NTK |
| FamilyName | CZH type insert for endmills |
Nakliye Bilgisi
PackageWeight
0.0047
Ad
Milling Indexable Inserts
FamilyName
CZH type insert for endmills
BrandName
NTK
