HSKA63HYDRO12X90

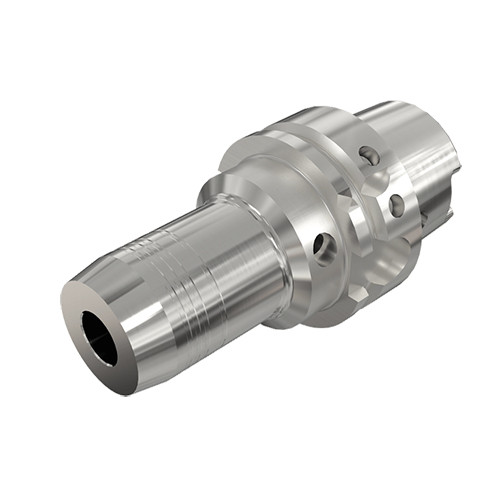

HSK-A şaftıyla TungHydro hidrolik pens tutucu
Ürün Özellikleri

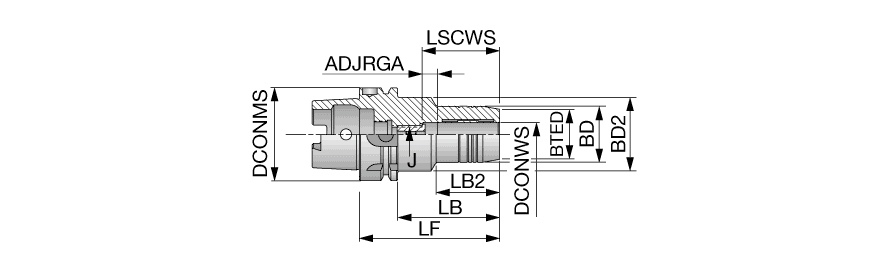

| Takım Bağlama Çapı (DCONMS) | 63 mm | Shank Type | Round |
| Body Length (LB) | 64 mm | Shank Size (SS) | 63. |
| Body Length_2 (LB_2) | 44 mm | Uygulama | | Alın kontaklı arayüz | |
| Thread Designation Inside (THID) | M10x1 | Tool Type | HSK |
| Body Diameter (BD) | 32 mm | Ölçüm Türü | Metric |
| Body Diameter_2 (BD_2) | 50 mm | Body Taper End Diameter (BTED) | 29 |
| Takım Toplam Boyu | 90 mm | Gövde Malzemesi | Steel |
| Clamping Length Workpiece Side (LSCWS) | 47 mm | Unit | M |
Ürün Özellikleri
| FamilyDesc | HSK-A şaftıyla TungHydro hidrolik pens tutucu | FamilyName | HSK A-HYDRO (TungHydro) |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordereed separately). | BrandName | Tungaloy |
| COO | GERMANY |
Nakliye Bilgisi
PackageWeight
1.1590
Ad
Hydraulic Holders
FamilyName
HSK A-HYDRO (TungHydro)
BrandName
Tungaloy
